BNK Co., Ltd.

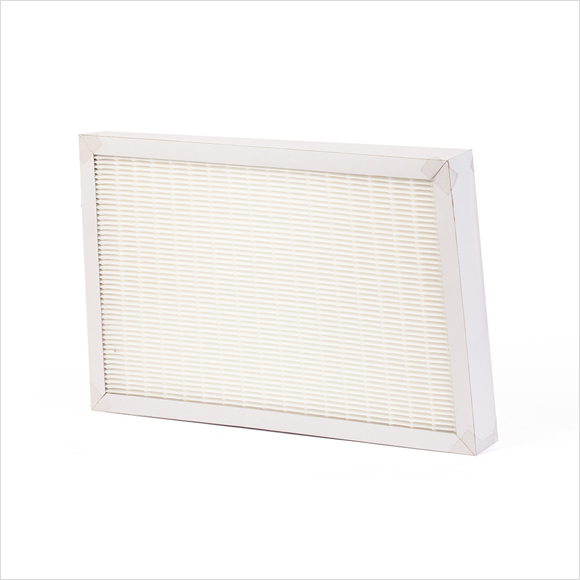

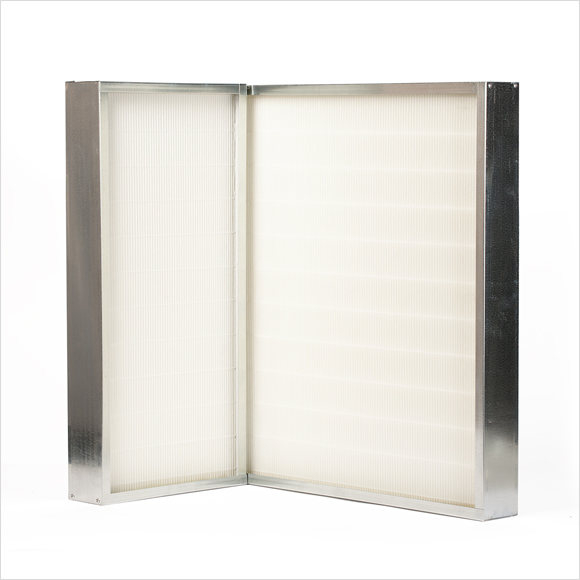

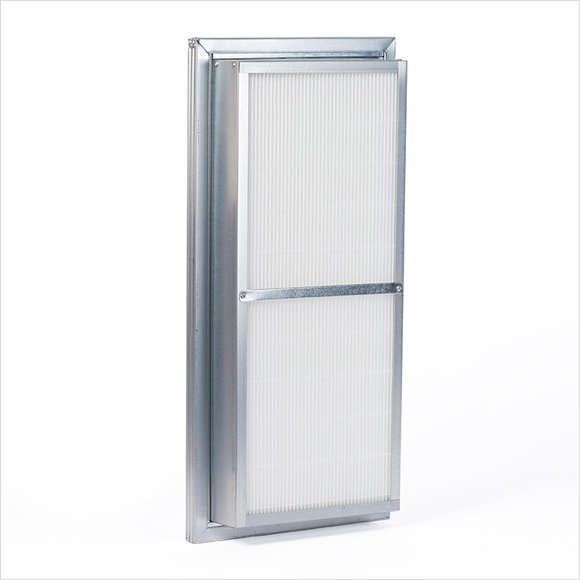

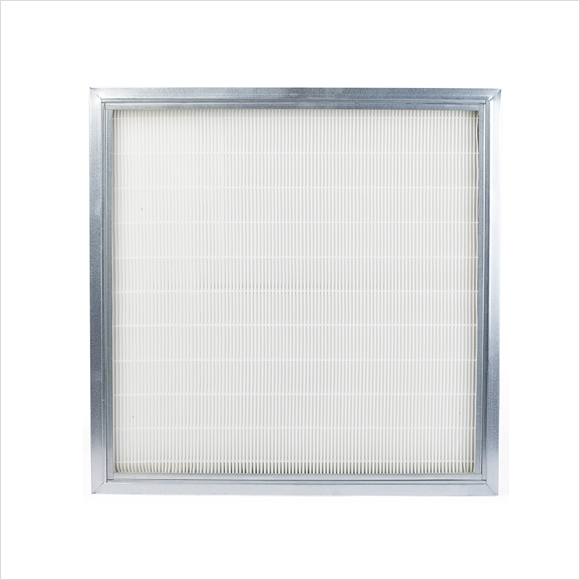

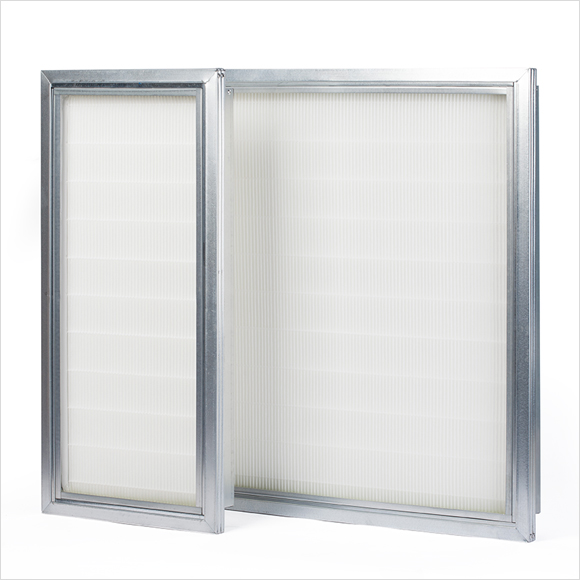

It is widely used for secondary or final stage filtration of industrial air conditioners that require cleanliness including electronics, precision equipment, pharmaceuticals, hospitals, and food product with filtration of particles less than 1.0 to 10 microns.

It is mid-to-high performance filter that guarantees 80%~95% of collection efficiency and colorimetric method, and the frame is made of P/Board or G/Steel for solid build.

It is used for pre-treatment of HEPA filter in Clean Room, precision machinery, etc. In B/D air purification and industrial factory, it is used for final filter.

Detailed dimension

※ Available for customized development and production in any dimension, thichness or weight per customer’s requirement.

- material and use condition (for general)

Frame	Media	Seater	Gasket	operation humidity	operation temperature
Gaivanized Steel	Glass Fiber	Self-fire extinguish	Neoprene sponge	100%RH	80℃
Gaivanized Steel	Synthetic Non-woven	Self-fire extinguish	Neoprene sponge	120%RH	100℃

- Rated wind direction and external size

filter rating	Rated wind volume (㎡/min)	External size(mm)			Pressure loss(mmAq)		Foaming efficiency (coloring method)
filter rating	Rated wind volume (㎡/min)	Height	Width	Depth	Initial	Final	Foaming efficiency (coloring method)
F5 F6 F8 F9	56	594	594	75	16.5	38	65% ~ 95%
	28	594	287	75
	47	492	594	75
	40	492	492	75
	56	594	594	75	11.5	38
	28	594	297	75
	47	494	594	75
	40	494	494	75

Contact information

Responsibility	Job title	Contact
Lee Dae seong	Team manager	+82)010-3678-9462
Lee Sung Min	Assistant manager	+82)041-553-2732
