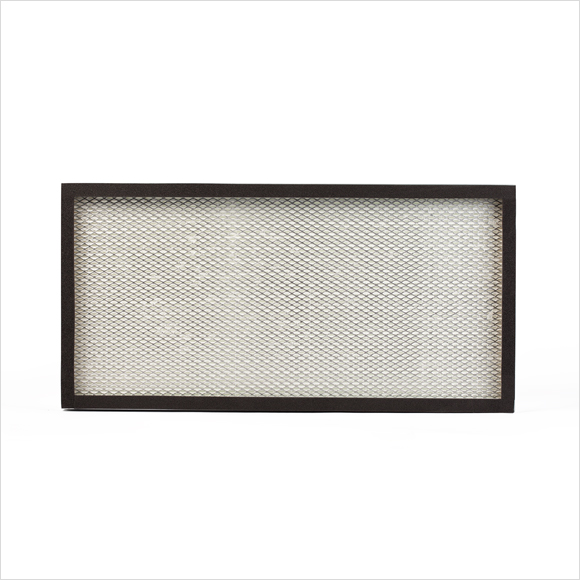

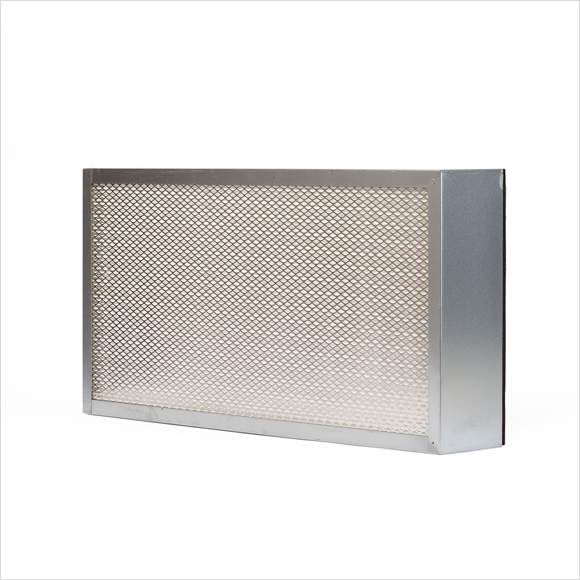

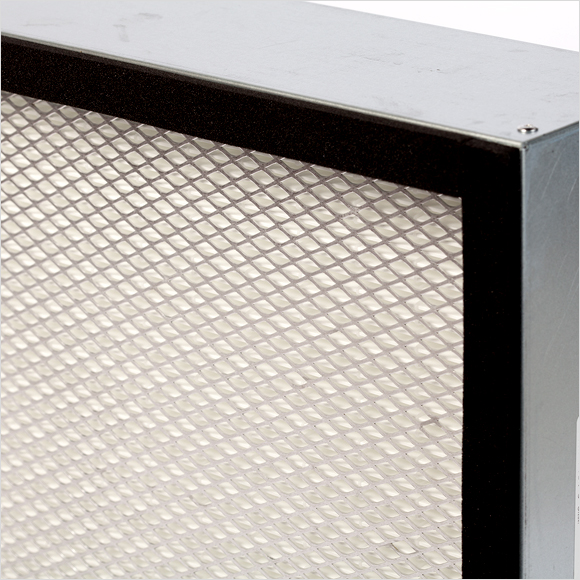

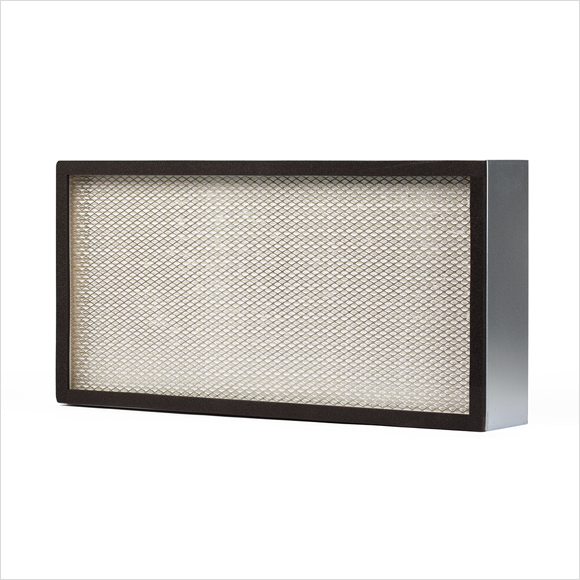

Industrial filter
Detailed dimension
※ Available for customized development and production in any dimension, thichness or weight per customer’s requirement.
Classification | filter rating | dimension(MM) HxWxD |
wind volume (CMM) | pressure loss | |
---|---|---|---|---|---|
initial | final | ||||
standard | U15 | 610 x 610 x 75 | 7 | 25.4 | 50 |
U16 | 610 x 1220 x 75 | 16 | |||
610 x 610 x 150 | 15 | ||||
610 x 762 x 150 | 19 | ||||
610 x 915 x 150 | 26 | ||||
U17 | 610 x 1220 x 150 | 32 | |||
610 x 610 x 292 | 28 | ||||
multiple wind volume | U16 | 610 x 610 x 75 | 11 | ||
610 x 1220 x 75 | 25 | ||||
610 x 610 x 150 | 24 | ||||
610 x 762 x 150 | 28 | ||||
610 x 915 x 150 | 36 | ||||
U17 | 610 x 1220 x 150 | 48 | |||
610 x 610 x 292 | 42 | ||||
610 x 762 x 292 | 52 |
