Product

Industrial filter

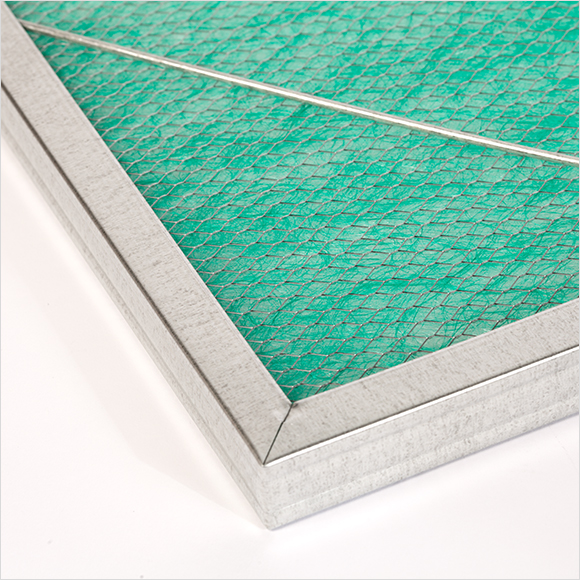

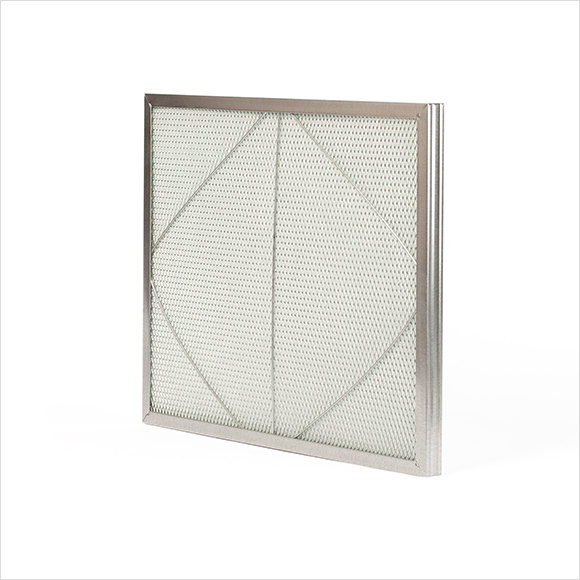

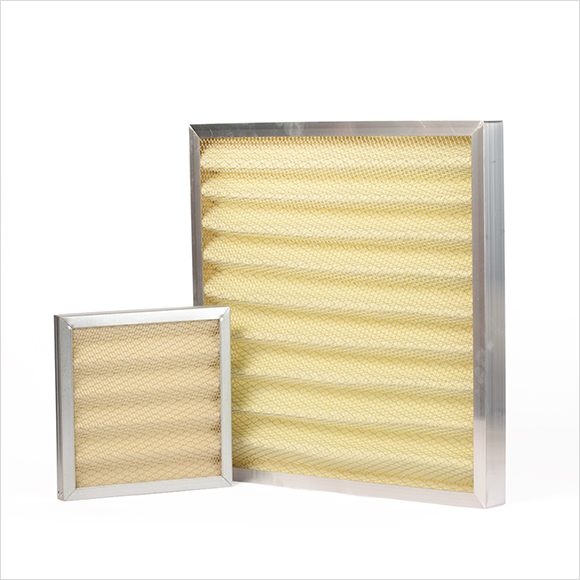

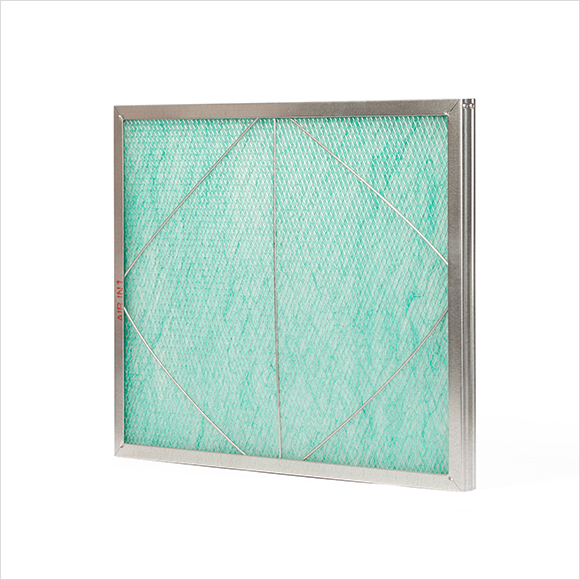

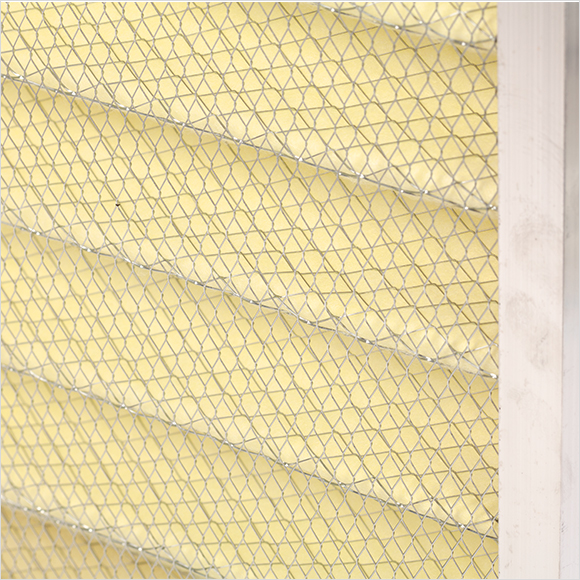

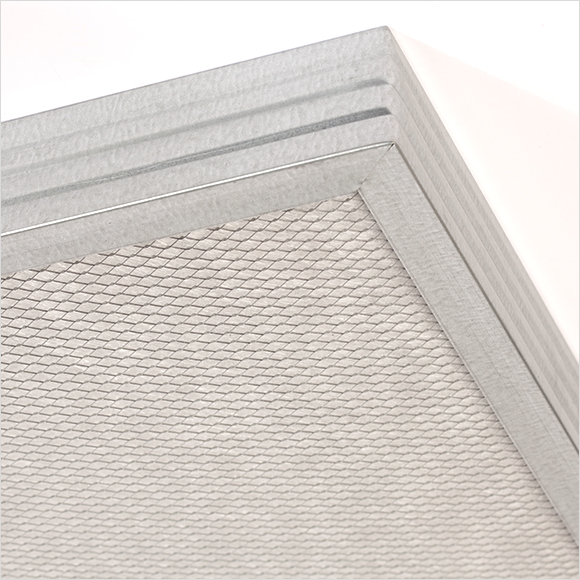

oven filter (for high temperature)
  • It is an oven filter mainly used in automotive drying booth.

    Its form is a pre-filter manufactured by bending and secondary post-processing of aramid-non-woven fabric developed by BNK’s own technology that is bent on the frame.The filter collects dust even when exposed to high temperature for an etende period up to 3 months in an environment where particles of up to 10 microns in high temperature. With an eco-friendly special fiber, it is convenient dispose of and replace unlike fiberglass. When exposed to high temperature for extended period, it does not cause defects by carbonization and extinction on its own, and it is a zero-glass fiber non-woven fabric with BNK’s patented special method.

    In addition, it is a smart and eco-friendly filter that can be used with confidence to protect large dust particles or 2nd and 3rd stage filters at high temperatures.It is also produced and delivered as a final product from BNK’s own production and assembly starting from the raw material



Detailed dimension

Available for customized development and production in any dimension, thichness or weight per customer’s requirement.

filter rating standard dimension standard maximum wind speed Foaming efficiency frame
G4 500*500*20T
500*500*25T
500*500*50T
1.2m/s~3.0m/s More than 90% (weight method) Aluminum
/
Galvanized
/
SUS
250*500*20T
250*500*25T
250*500*50T

Contact information

Responsibility Job title Contact
Lee Dae seong Team manager +82)010-3678-9462
Lee Sung Min Assistant manager +82)041-553-2732
Choi Jae-joon Administrative manager +82)041-553-2733
